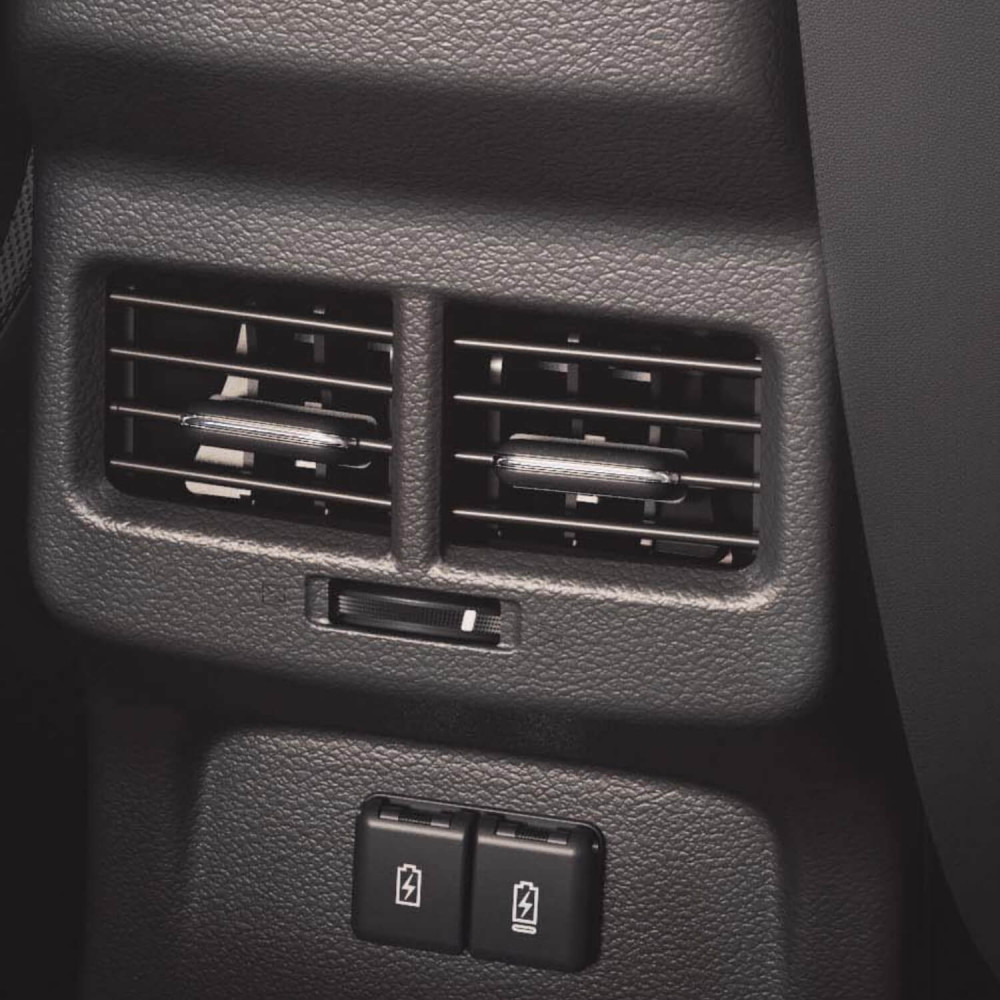

FitMyCar® Rear Armrest Charging Socket Wiring - Brezza, Baleno, Fronx, Glanza, Taisor

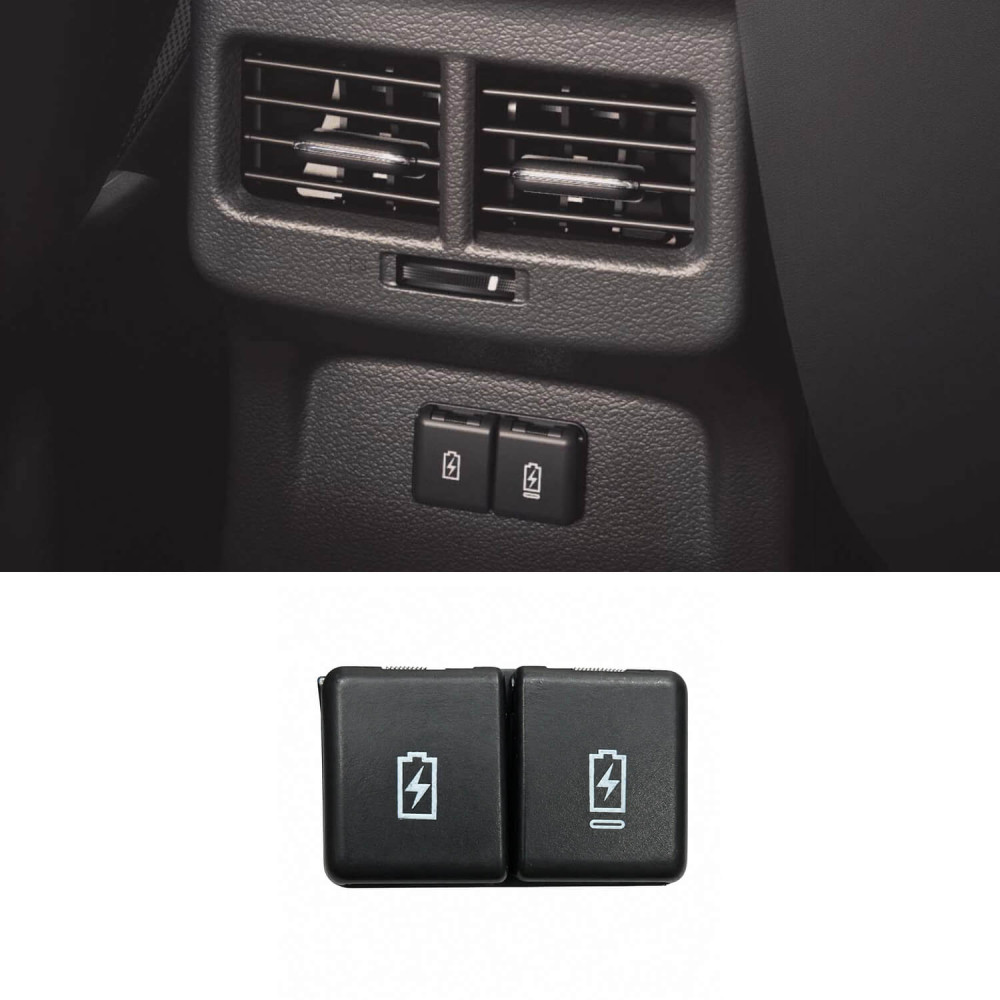

Upgrade your car interior with this premium rear charging socket with wiring, specially designed for Maruti Suzuki Brezza, Baleno, Fronx, Toyota Glanza, and Toyota Taisor. This OEM-style rear USB socket for car offers convenient charging access for rear passengers and provides a clean factory-fit finish inside the armrest or center console.

This complete armrest charger wiring kit includes charging socket, wiring harness, and connectors for easy installation. Perfect for charging mobile phones, tablets, power banks, and other USB devices during travel. If you are searching for rear charging socket price or Maruti Suzuki charging socket price, this is a durable and value-for-money upgrade for your vehicle.

Installation Guide – Rear Charging Socket with Wiring

Step 1: Remove Armrest Rear Panel
Carefully open the rear armrest or center console panel using a plastic trim removal tool.

Step 2: Check Socket Fitment

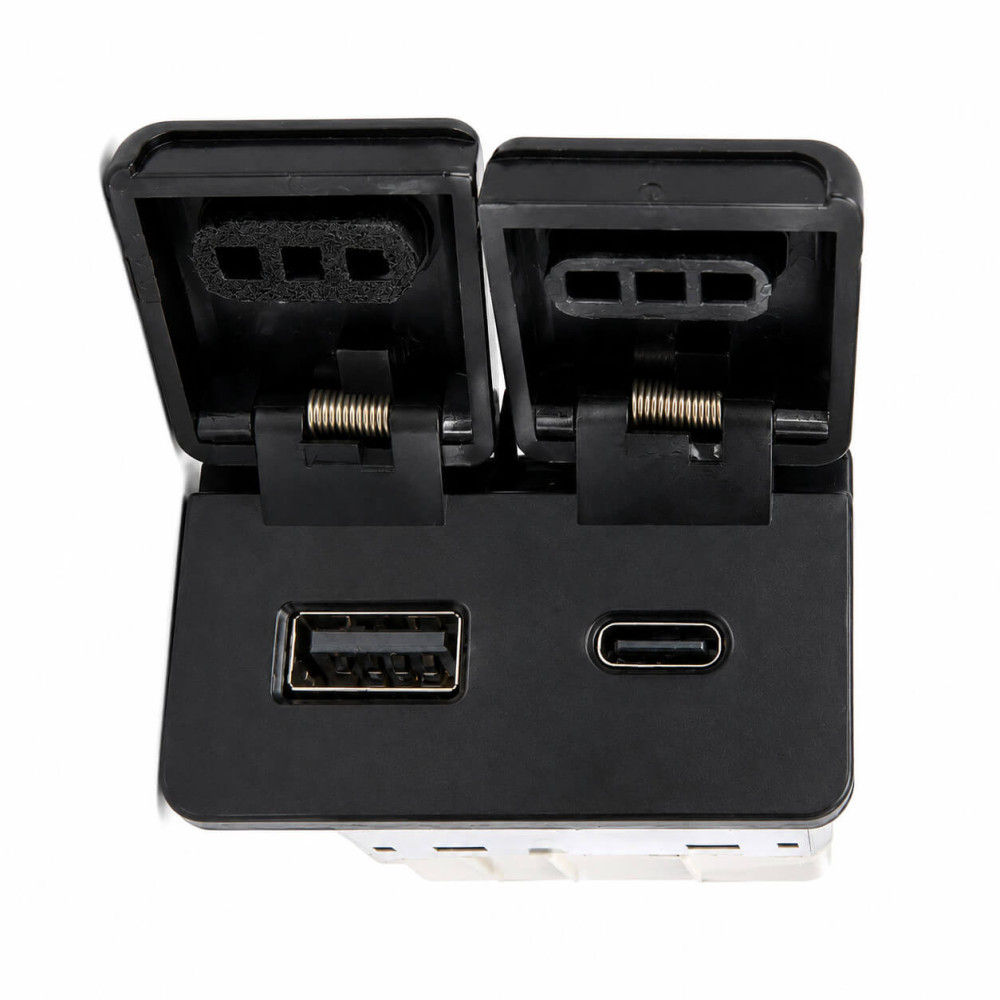

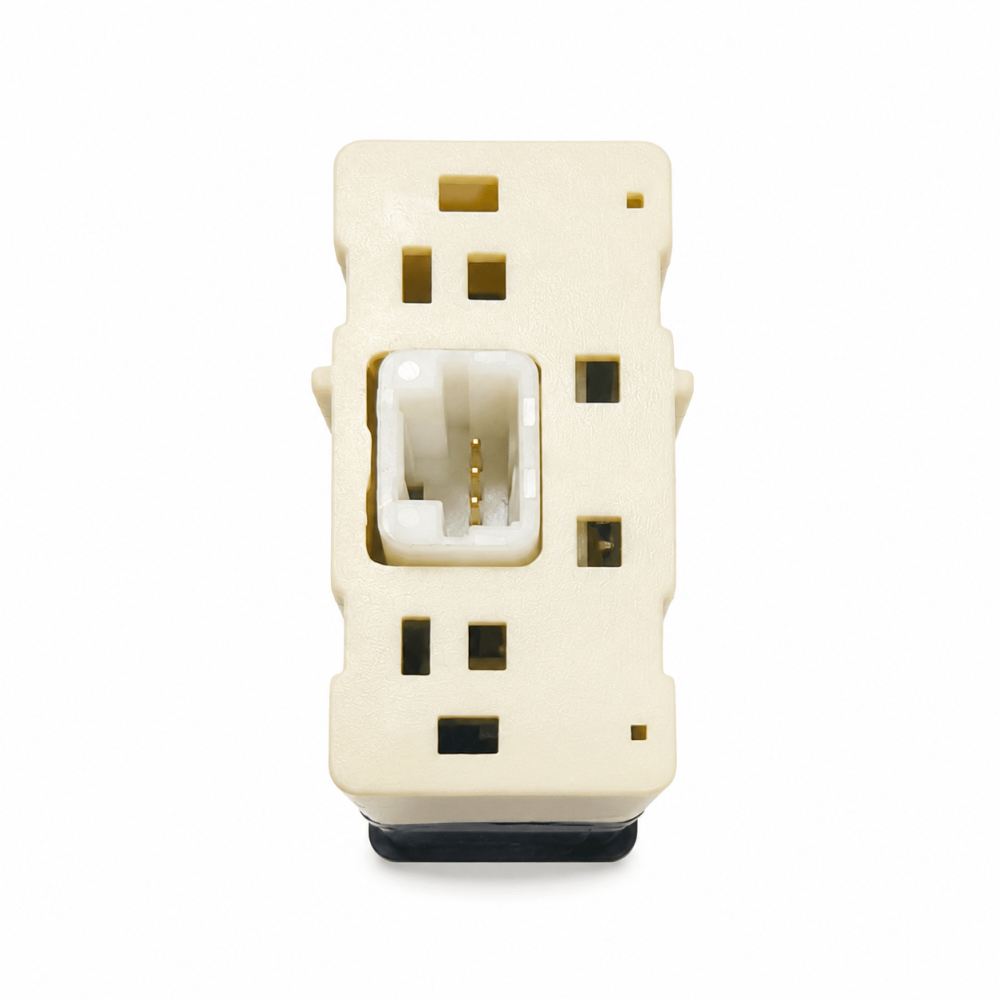

Insert the rear USB charging socket into the designated slot and ensure proper fitment.

Step 3: Wiring Connection

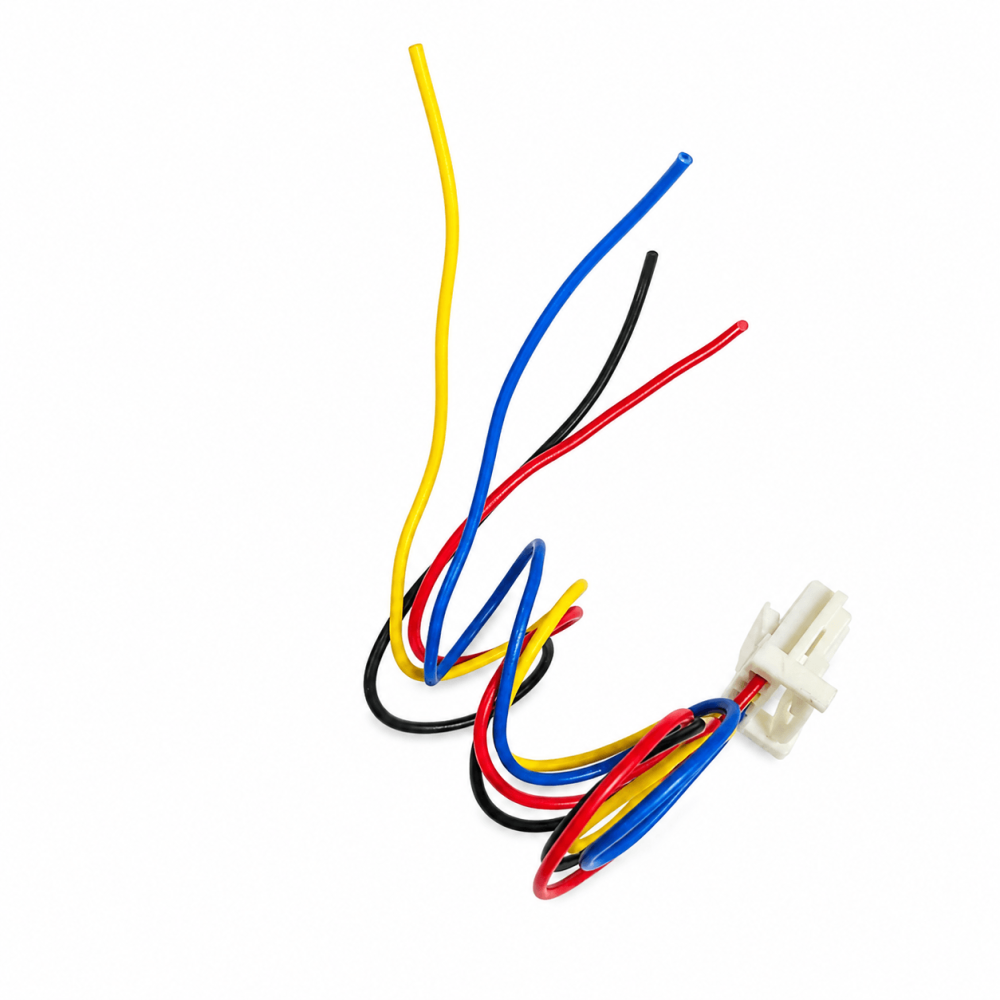

• Red Wire → Connect to ACC / 12V power supply
• Black Wire → Ground connection
• Yellow Wire → Illumination (optional)
• Blue Wire → USB charging output line (if applicable)

⚠ Please verify all wiring connections with a professional installer before final installation.

Step 4: Secure Connections
Use insulation tape or proper connectors to secure wiring and avoid loose joints.

Step 5: Test Charging Socket
Start ignition and test the charging socket using a mobile phone or USB device.

Step 6: Reinstall Panel
Once everything works correctly, refit the rear panel securely.

Package Includes

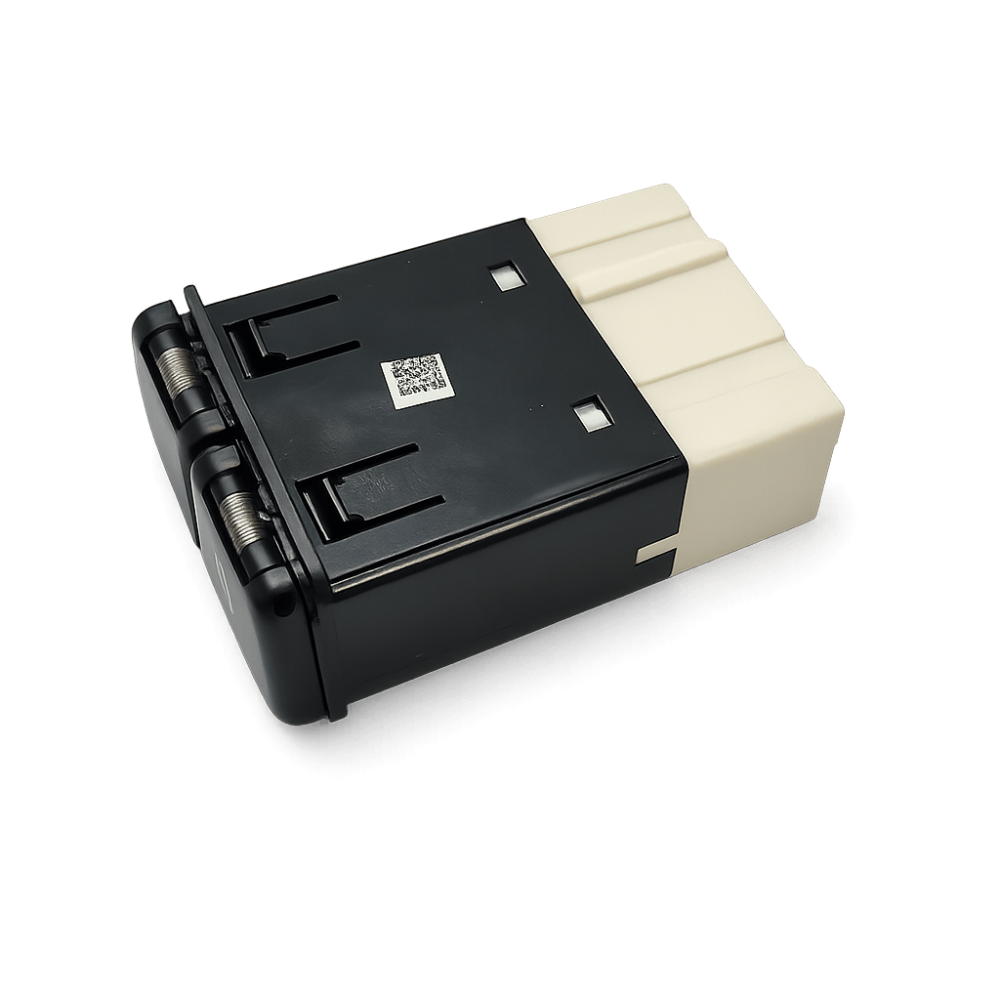

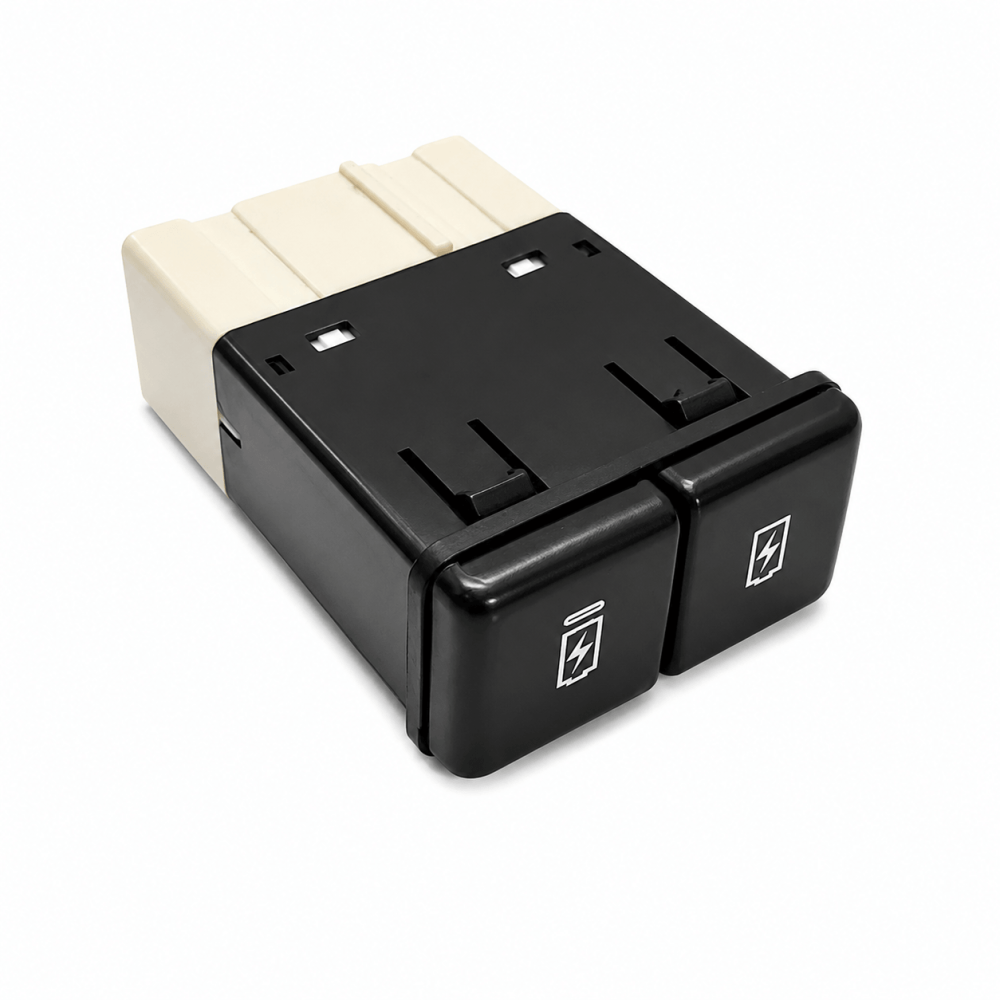

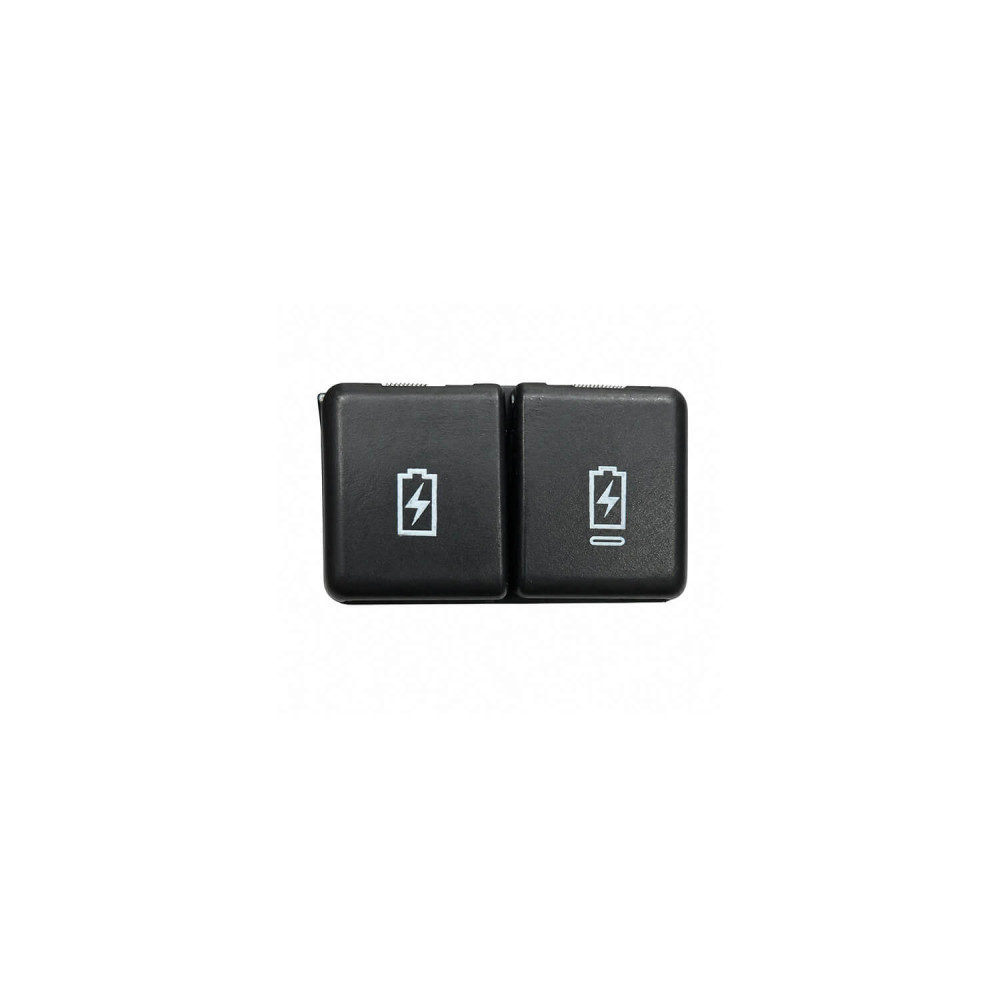

• 1 x Rear Charging Socket
• Wiring Harness
